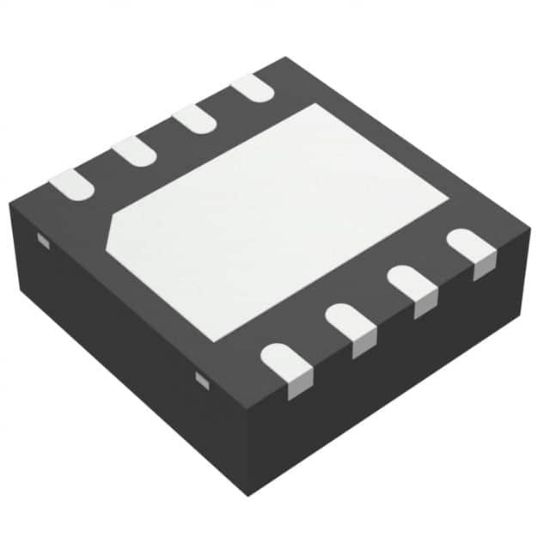

TPS73701DRBRG4

IC REG LINEAR POS ADJ 1A 8SON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS73701DRBRG4

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS73701DRBRG4 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
BZN	TPS73701DRBRG4	TI	8	0	Single Output LDO, 1A, Adj. (1.2 to 5.0V), Reverse Current Protection

Operating Temperature	-40°C ~ 125°C
Voltage Dropout (Max)	0.5V @ 1A
Voltage - Output (Min/Fixed)	1.2V
Mounting Type	Surface Mount
Current - Output	1A
PSRR	58dB ~ 37dB (100Hz ~ 10kHz)
Current - Supply (Max)	1.3 mA
Protection Features	Over Current, Over Temperature, Reverse Polarity
Output Configuration	Positive
Package	Tape & Reel (TR)
Control Features	Enable
Voltage - Input (Max)	5.5V
Supplier Device Package	8-SON (3x3)
Number of Regulators	1
Current - Quiescent (Iq)	400 μA
RoHS	RoHS
Voltage - Output (Max)	5.5V
Output Type	Adjustable
