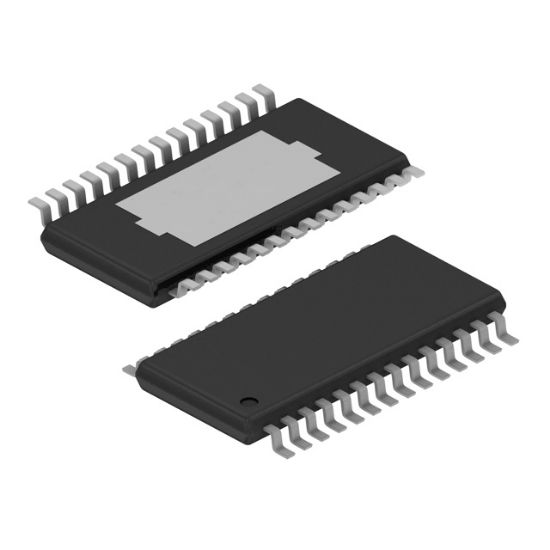

TPS767D318PWPR

IC REG LIN 1.8V/3.3V 1A 28HTSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS767D318PWPR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS767D318PWPR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
PS767D318	TPS767D318PWPR	TI	28	0	Dual-Output Low-Dropout (LDO) Voltage Regulators

Operating Temperature	-40°C ~ 125°C
Voltage Dropout (Max)	0.58V @ 1A
Voltage - Output (Min/Fixed)	1.8V, 3.3V
Mounting Type	Surface Mount
Current - Output	1A
PSRR	60dB (1kHz)
Current - Supply (Max)	-
Protection Features	Over Current, Over Temperature, Reverse Polarity
Output Configuration	Positive
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Control Features	Enable, Reset
Voltage - Input (Max)	10V
Supplier Device Package	28-HTSSOP
Number of Regulators	2
Current - Quiescent (Iq)	125 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
