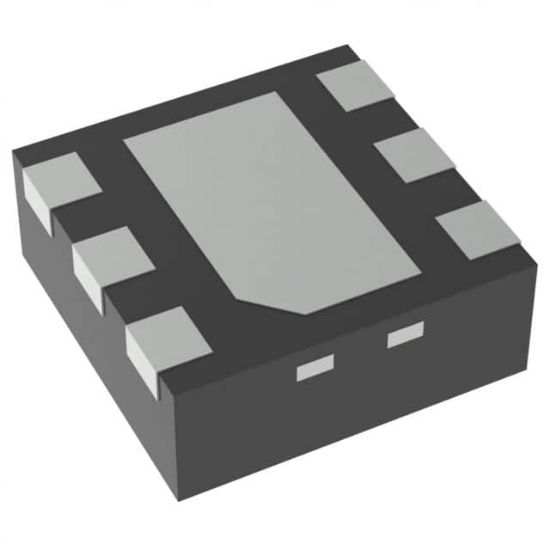

TPS78225QDRVRQ1

IC REG LINEAR 2.5V 150MA 6WSON

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TPS78225QDRVRQ1

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TPS78225QDRVRQ1 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
NSY	TPS78225QDRVRQ1		R-PUSON-R6	6	Automotive Catalog Single Fixed Output LDO, 150mA, 1uA Quiescent Current

Operating Temperature	-40°C ~ 125°C
Voltage Dropout (Max)	0.25V @ 150mA
Voltage - Output (Min/Fixed)	2.5V
Mounting Type	Surface Mount
Current - Output	150mA
PSRR	40dB ~ 15dB (10Hz ~ 1kHz)
Current - Supply (Max)	8 μA
Protection Features	Over Current, Over Temperature, Reverse Polarity
Output Configuration	Positive
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Control Features	Enable
Voltage - Input (Max)	5.5V
Supplier Device Package	6-WSON (2x2)
Number of Regulators	1
Current - Quiescent (Iq)	1.3 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
