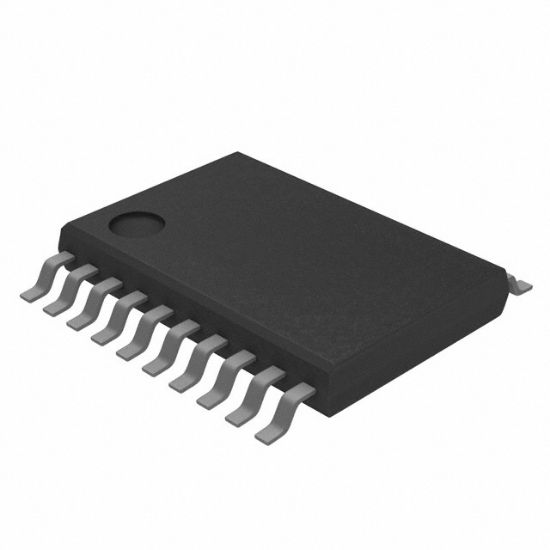

TS5L100PW

IC ETHERNET SWITCH QUAD 20TSSOP

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rochester Electronics, LLC

SKU: TS5L100PW

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TS5L100PW Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
TG100	TS5L100PW		TSSOP-20	20	Quad SPDT Wide Bandwidth LAN Switch with Low On-State Resistance

Operating Temperature	0°C ~ 70°C (TA)
On-State Resistance (Max)	19Ohm
Mounting Type	Surface Mount
Supplier Device Package	20-TSSOP
Switch Circuit	SPDT
Number of Channels	4
Package	Tube,Tube
-3db Bandwidth	350MHz
Voltage - Supply, Dual (V±)	-
Voltage - Supply, Single (V+)	6V ~ 6.5V
Multiplexer/Demultiplexer Circuit	2:1
Applications	Networking
Features	10/100 Base-T
RoHS	RoHS
