TXS0104ERGYR

IC TRNSLTR BIDIRECTIONAL 14VQFN

1 review(s) | Add your review

Availability: In stock

Manufacturer: Texas Instruments

SKU: TXS0104ERGYR

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

TXS0104ERGYR Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
YF04E	TXS0104ERGYR		S-PVQFN-N14	14	4-Bit Bidirectional Voltage-Level Translator for Open-Drain Applications

Operating Temperature	-40°C ~ 85°C (TA)
Voltage - VCCA	1.65 V ~ 3.6 V
Data Rate	24Mbps
Output Signal	-
Input Signal	-
Number of Circuits	1
Channels per Circuit	4
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?,Bulk
Channel Type	Bidirectional
Voltage - VCCB	2.3 V ~ 5.5 V
Mounting Type	Surface Mount

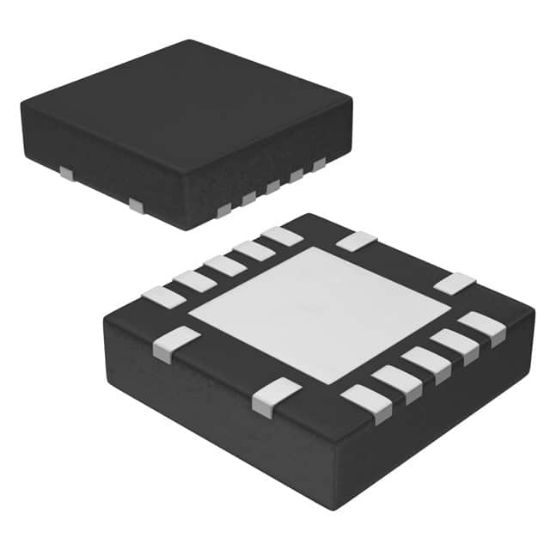

Supplier Device Package	14-VQFN (3.5x3.5)
Translator Type	Voltage Level
Features	Auto-Direction Sensing
RoHS	RoHS
Output Type	Open Drain, Push-Pull
