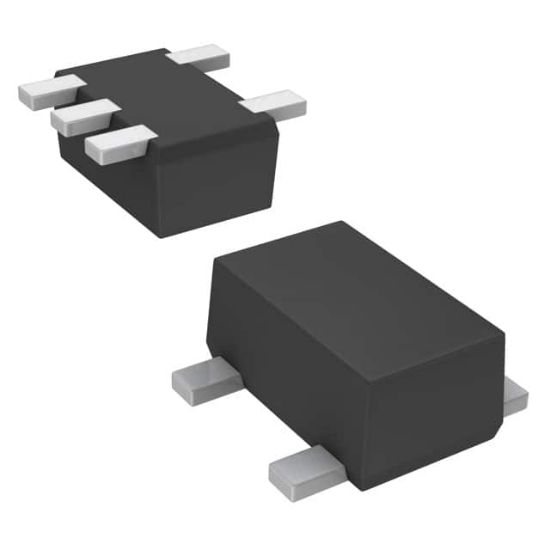

UP0121MG0L

TRANS PREBIAS DUAL NPN SSMINI5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Panasonic Electronic Components

SKU: UP0121MG0L

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

UP0121MG0L Description

Vce Saturation (Max) @ Ib, Ic	250mV @ 300μA, 10mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	100mA
Supplier Device Package	SSMini5-F3
Current - Collector Cutoff (Max)	500nA
Voltage - Collector Emitter Breakdown (Max)	50V
Power - Max	125mW
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Resistor - Emitter Base (R2)	47kOhms
Resistor - Base (R1)	2.2kOhms
DC Current Gain (hFE) (Min) @ Ic, Vce	80 @ 5mA, 10V
Frequency - Transition	150MHz
RoHS	RoHS
Transistor Type	2 NPN - Pre-Biased (Dual)
