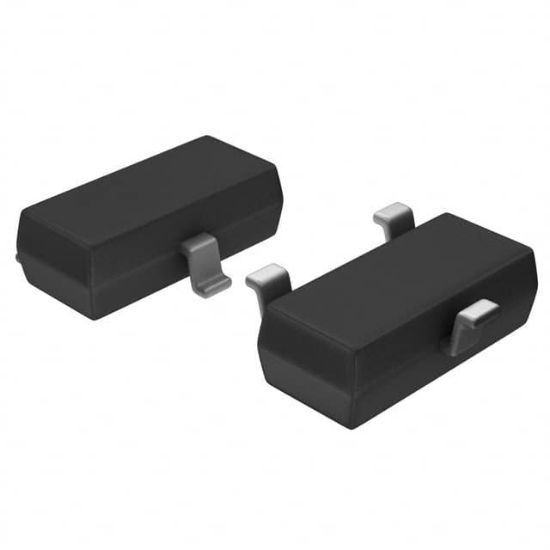

ZC831BTA

DIODE VAR CAP 15PF 25V SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZC831BTA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZC831BTA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
J3B	ZC831BTA		SOT-23	3	SILICON 28V HYPERABRUPT VARACTOR DIODE

Capacitance Ratio	6
Operating Temperature	-55°C ~ 150°C (TJ)
RoHS	RoHS
Q @ Vr, F	300 @ 3V, 50MHz
Voltage - Peak Reverse (Max)	25 V
Supplier Device Package	SOT-23-3
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Diode Type	Single
Capacitance @ Vr, F	15.75pF @ 2V, 1MHz
Mounting Type	Surface Mount
Capacitance Ratio Condition	C2/C20
