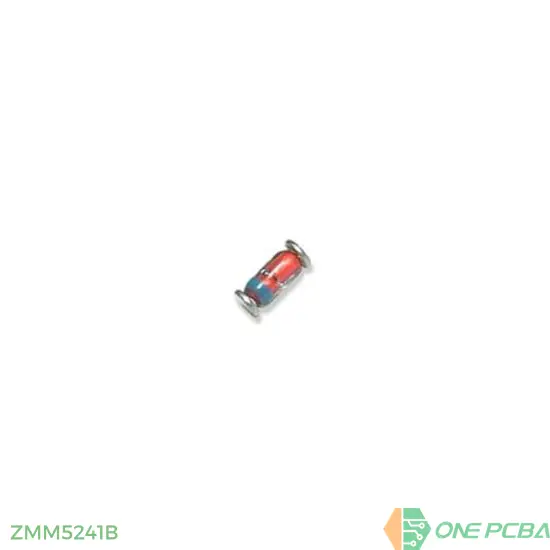

ZMM5241B

DIO ZENER GLASS 11V 500MW LL-34

1 review(s) | Add your review

Availability: In stock

Manufacturer: Rectron USA

SKU: ZMM5241B

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZMM5241B Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
5241	ZMM5241B	TAITRON	SOD-80	2	10.45..11.55V, Izt=20mA, Zzt=22Ω, 500mW

Impedance (Max) (Zzt)	22 Ohms
Power - Max	500 mW
Voltage - Forward (Vf) (Max) @ If	-
Operating Temperature	-
RoHS	RoHS
Current - Reverse Leakage @ Vr	2 μA @ 8.4 V
Mounting Type	Surface Mount
Supplier Device Package	LL-34
Package	Tape & Reel (TR)
Voltage - Zener (Nom) (Vz)	11 V
Tolerance	±5%
