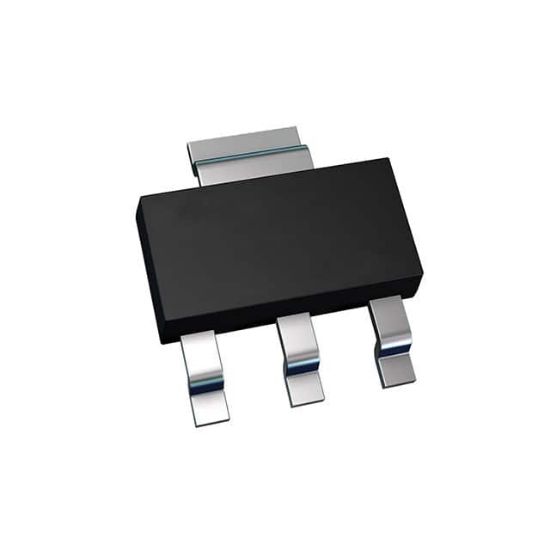

ZSR330GTA

IC REG LINEAR 3.3V 200MA SOT223

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZSR330GTA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZSR330GTA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
ZSR330	ZSR330GTA	ZETEX	SOT223	3	3.0 to 12 volt fixed positive local voltage regulator

Operating Temperature	-55°C ~ 125°C
Voltage Dropout (Max)	-
Voltage - Output (Min/Fixed)	3.3V
Mounting Type	Surface Mount
Current - Output	200mA
PSRR	64dB (120Hz)
Current - Supply (Max)	-
Protection Features	Over Temperature, Short Circuit
Output Configuration	Positive
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Control Features	-
Voltage - Input (Max)	20V
Supplier Device Package	SOT-223-3
Number of Regulators	1
Current - Quiescent (Iq)	600 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
