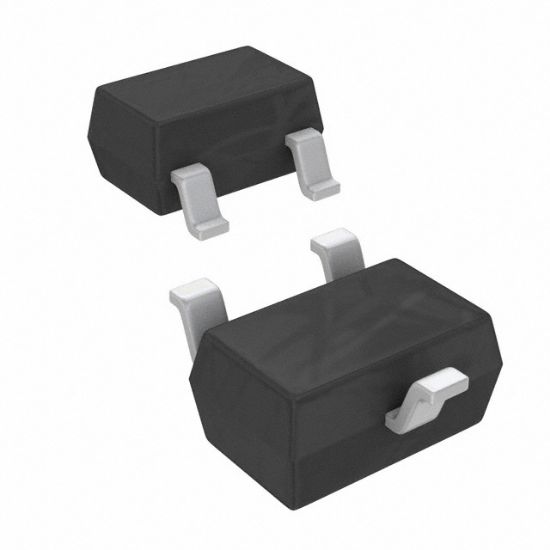

ZUMT720TC

TRANS PNP 40V 0.75A SC70-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZUMT720TC

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZUMT720TC Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	250mV @ 100mA, 750mA
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	750 mA
Supplier Device Package	SOT-323
Current - Collector Cutoff (Max)	10nA
Voltage - Collector Emitter Breakdown (Max)	40 V
Power - Max	500 mW
Package	Tape & Reel (TR)
DC Current Gain (hFE) (Min) @ Ic, Vce	90 @ 500mA, 2V
Frequency - Transition	220MHz
RoHS	RoHS
Transistor Type	PNP
