ZXCL260E5

IC REG LINEAR 2.6V 150MA SOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXCL260E5

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXCL260E5 Description

marking code	Part No.	Manufacturer	Package	Pin	Memo

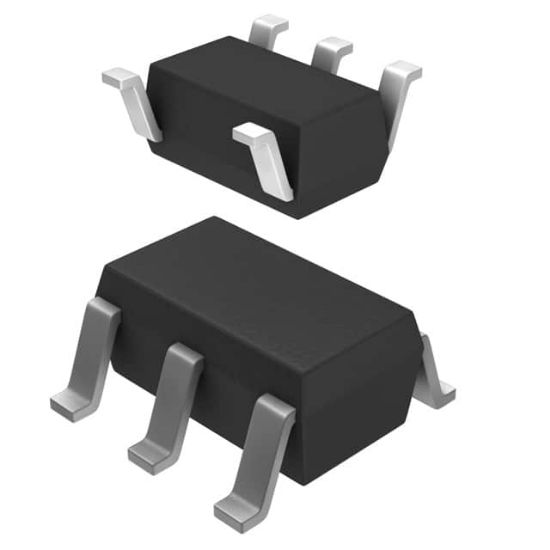

L26B	ZXCL260E5		SOT23-5	5	2.6V MICROPOWER LOW DROPOUT REGULATOR

Operating Temperature	-40°C ~ 85°C
Voltage Dropout (Max)	0.31V @ 100mA
Voltage - Output (Min/Fixed)	2.6V
Mounting Type	Surface Mount
Current - Output	150mA
PSRR	-
Current - Supply (Max)	120 μA
Protection Features	Over Current, Over Temperature
Output Configuration	Positive
Package	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Control Features	Enable
Voltage - Input (Max)	5.5V
Supplier Device Package	SOT-23-5
Number of Regulators	1
Current - Quiescent (Iq)	50 μA
RoHS	RoHS
Voltage - Output (Max)	-
Output Type	Fixed
