ZXM62P02E6TA

MOSFET P-CH 20V 2.3A SOT23-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXM62P02E6TA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXM62P02E6TA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
2P02	ZXM62P02E6TA	ZETEX	SOT-163/SOT23-6	0	场效应管FET MOSFET-P沟道MOSFET P-Channel

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	2.3A (Ta)
Rds On (Max) @ Id, Vgs	200mOhm @ 1.6A, 4.5V
FET Type	P-Channel
Drive Voltage (Max Rds On, Min Rds On)	2.7V, 4.5V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	1.1W (Ta)
Drain to Source Voltage (Vdss)	20 V
Vgs (Max)	±12V
Vgs(th) (Max) @ Id	700mV @ 250μA
Gate Charge (Qg) (Max) @ Vgs	5.8 nC @ 4.5 V

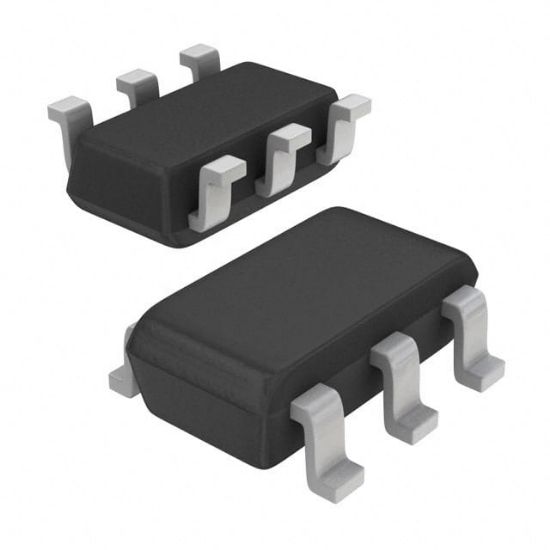

Supplier Device Package	SOT-23-6
Input Capacitance (Ciss) (Max) @ Vds	320 pF @ 15 V
RoHS	RoHS
