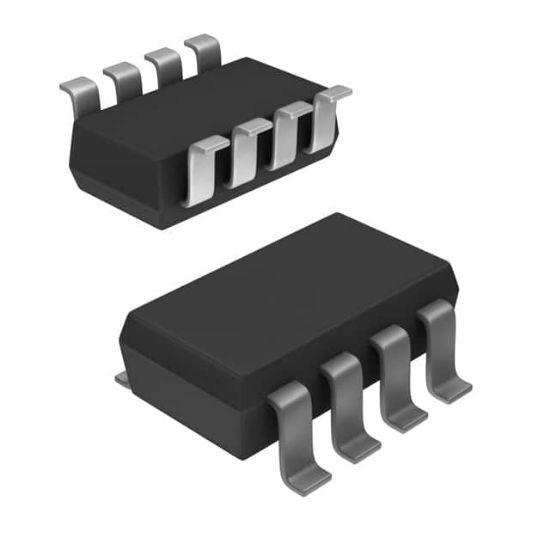

ZXMHN6A07T8TA

MOSFET 4N-CH 60V 1.4A SM8

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXMHN6A07T8TA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXMHN6A07T8TA Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	Logic Level Gate
Mounting Type	Surface Mount
Supplier Device Package	SM8
Current - Continuous Drain (Id) @ 25°C	1.4A
Rds On (Max) @ Id, Vgs	300mOhm @ 1.8A, 10V
FET Type	4 N-Channel (H-Bridge)
Power - Max	1.6W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Drain to Source Voltage (Vdss)	60V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	3.2nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	166pF @ 40V
RoHS	RoHS
