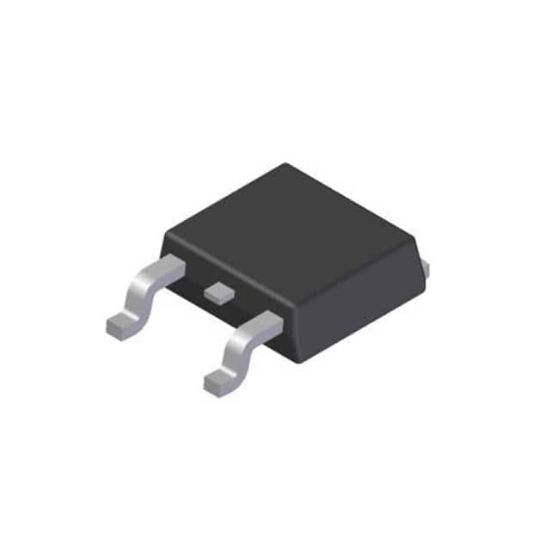

ZXMN6A08KTC

MOSFET N-CH 60V 5.36A TO252-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXMN6A08KTC

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXMN6A08KTC Description

Operating Temperature	-55°C ~ 150°C (TJ)
FET Feature	-
Mounting Type	Surface Mount
Technology	MOSFET (Metal Oxide)
Current - Continuous Drain (Id) @ 25°C	5.36A (Ta)
Rds On (Max) @ Id, Vgs	80mOhm @ 4.8A, 10V
FET Type	N-Channel
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Power Dissipation (Max)	2.12W (Ta)
Drain to Source Voltage (Vdss)	60 V
Vgs (Max)	±20V
Vgs(th) (Max) @ Id	3V @ 250μA
Gate Charge (Qg) (Max) @ Vgs	5.8 nC @ 10 V
Supplier Device Package	TO-252-3
Input Capacitance (Ciss) (Max) @ Vds	459 pF @ 40 V
RoHS	RoHS
