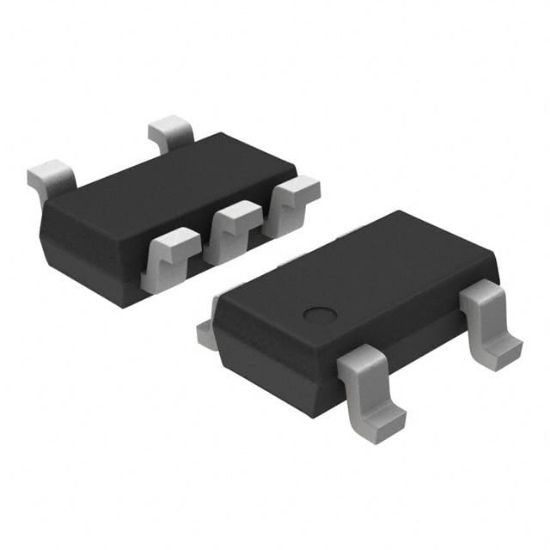

ZXRE060ET5TA

IC VREF SHUNT ADJ 1% TSOT23-5

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXRE060ET5TA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXRE060ET5TA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
S06	ZXRE060ET5TA		TSOT23-5	5	0.6V ADJUSTABLE PRECISION SHUNT REGULATOR

Operating Temperature	-40°C ~ 125°C (TA)
Voltage - Output (Min/Fixed)	0.2V
Mounting Type	Surface Mount
Current - Output	15 mA
Noise - 10Hz to 10kHz	-
Reference Type	Shunt
Noise - 0.1Hz to 10Hz	-
Voltage - Output (Max)	18 V
Voltage - Input	-
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
Current - Cathode	300 μA
Tolerance	±1%
Supplier Device Package	TSOT-23-5
Temperature Coefficient	-
RoHS	RoHS
Current - Supply	-
Output Type	Adjustable
