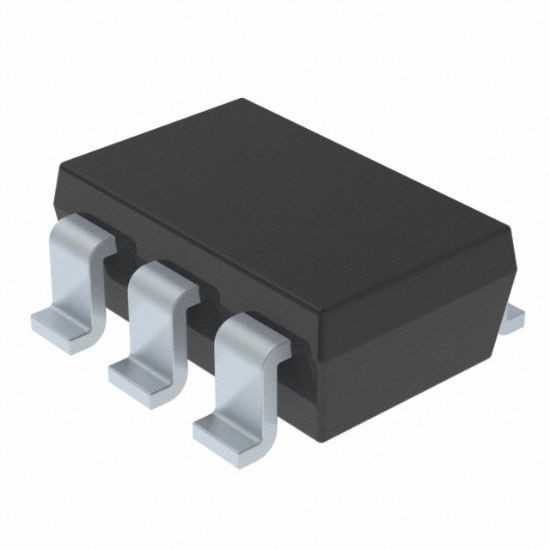

ZXT13N50DE6TA

TRANS NPN 50V 4A SOT23-6

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXT13N50DE6TA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXT13N50DE6TA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
N50D	ZXT13N50DE6TA	ZETEX	SOT-163/SOT23-6	0	三极管Bipolar Junction Transistors(BJT) NPN

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	180mV @ 400mA, 4A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	4 A
Supplier Device Package	SOT-26
Current - Collector Cutoff (Max)	100nA
Voltage - Collector Emitter Breakdown (Max)	50 V
Power - Max	1.1 W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	300 @ 1A, 2V
Frequency - Transition	115MHz
RoHS	RoHS
Transistor Type	NPN
