ZXTP25140BFHTA

TRANS PNP 140V 1A SOT23-3

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: ZXTP25140BFHTA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

ZXTP25140BFHTA Description

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	260mV @ 100mA, 1A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	1 A

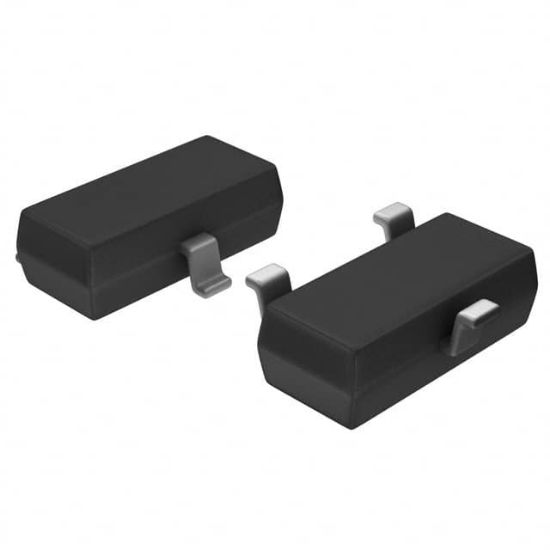

Supplier Device Package	SOT-23-3
Current - Collector Cutoff (Max)	50nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	140 V
Power - Max	1.25 W
Package	Tape & Reel (TR),Cut Tape (CT),Digi-Reel?
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 10mA, 2V
Frequency - Transition	75MHz
RoHS	RoHS
Transistor Type	PNP
