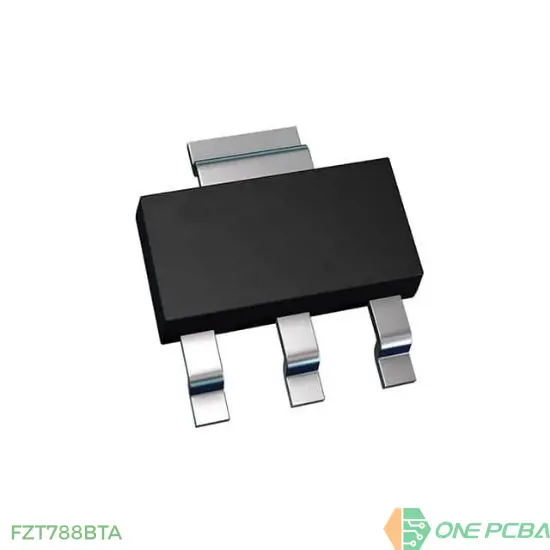

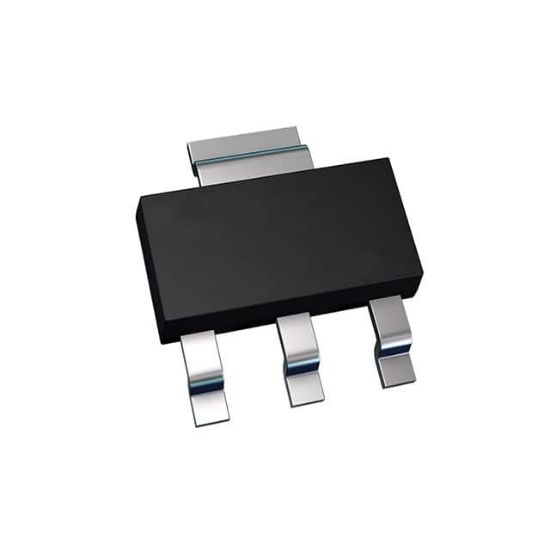

FZT788BTA

TRANS PNP 15V 3A SOT-223

1 review(s) | Add your review

Availability: In stock

Manufacturer: Diodes Incorporated

SKU: FZT788BTA

Datasheet:

How many quantities do you need:

Please input your name:

Please input your email:

FZT788BTA Description

marking code	Part No.	Manufacturer	Package	Pin	Memo
FZT788B	FZT788BTA	ZETEX	SOT-223	0	三极管Bipolar Junction Transistors(BJT) PNP

Operating Temperature	-55°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 3A
Mounting Type	Surface Mount
Current - Collector (Ic) (Max)	3 A
Supplier Device Package	SOT-223-3
Current - Collector Cutoff (Max)	100nA (ICBO)
Voltage - Collector Emitter Breakdown (Max)	15 V
Power - Max	2 W
Package	Tape & Reel (TR),Cut Tape (CT)
DC Current Gain (hFE) (Min) @ Ic, Vce	500 @ 10mA, 2V
Frequency - Transition	100MHz
RoHS	RoHS
Transistor Type	PNP
